Home > CW Fiber Lasers >

1000w Ytterbium Doped Fiber Laser 1080nm Wavelength

Product Categories

BWT Beijing Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : China

Brand Name : BWT

Certification : ISO9001

MOQ : 1 Piece/Pieces

Delivery Time : 4-8weeks

Payment Terms : T/T

Supply Ability : 100,000/year

wavelength : 1080nm

power : 1000W

Fiber bundle diameter : 600µm

Cable Length : 10m or Customized

Applications : Cladding , Welding , Laser additive reproduction

Power Stability (25℃) : <3%(2h)

Contact Now

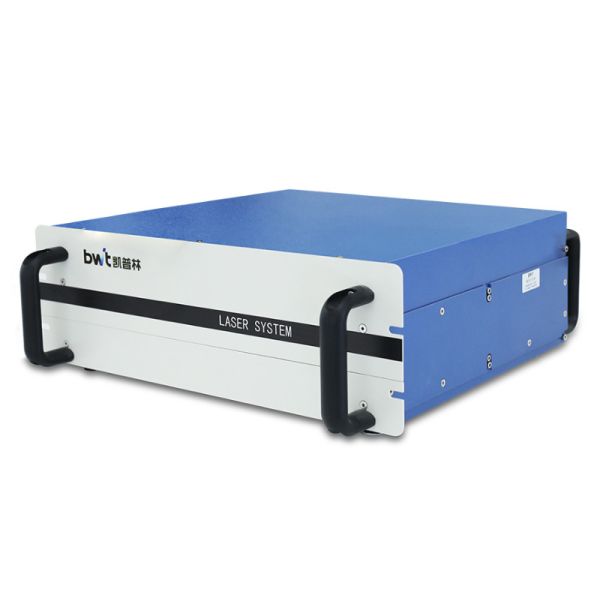

1000W Ytterbium-doped fiber laser

Features:

Low cost
Maintenance free operation
Excellent power stability

Convenient control interface
Modulation frequency up to 5kHz
High wall-plug efficiency

Applications:

Cladding

Welding

Laser additive reproduction

Optical Character
Power	1000W
Wavelength	1080土10
Output Fiber Core Diameter	20/50μm
Cable Length	12m or Customized
Beam Delivery	QBH or Customized
Guide Beam	Red
Operation Mode	Continuous or Modulated
Polarization	Random
Power Stability (25℃)	<3%(2h)
Power Adjustment Scope	10%-100%
Max Modulation Frequency	5kHz
Overall size and weights
weights	<30Kg
Outline Feature	153 mm482mm378mm
Electronic Character
voltage	Single Phase, 220土20v,AC,PE,50/6OHz
Power Consumption	3.0 kW
Control lnterface	RS232
Water Cooling Parameters
Minimum Water Cooling Capacity	2KW
Cooling Tubes Size (External)	25 ℃ (Laser Module),30 ℃(QBH)
Cooling Tubes Size (External)	Φ12mm
Cooling Water Flux	>10L/min
QBH Cooling Water Flux	1.5-2.0L/min

Product Tags:

bwt ytterbium doped fiber laser
